| PERFORMANCE | |
| Processor | Intel Core i5-10500T (6C / 12T, 2.3 / 3.8GHz, 12MB) |
| Graphics | Integrated Intel UHD Graphics 630 |
| Chipset | Intel H470 Chipset |
| Memory | 1x 8GB SO-DIMM DDR4-2666 |
| Memory Slots | Two DDR4 SO-DIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR4-2933 |
| Storage | 1x 256GB SSD M.2 2280 PCIe NVMe Opal |
| Optane Memory | None |
| Storage Support | Up to two drives, 1x 2.5" HDD + 1x M.2 SSD
• 2.5" HDD up to 1TB
• M.2 SSD up to 2TB
• Optional Intel Optane Memory, M.2 |
| Card Reader | No card reader |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC233VB codec or ALC897Q codec |
| Speakers | 1.5Wx1 |
| Power Supply | 65W 89% Adapter |
| DESIGN | |
| Keyboard | USB Calliope Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Expansion Slots | Two M.2 slots (one for WLAN, one for SSD) |
| Case Color | Black |
| Stand | Stand |
| Adapter Cage | None |
| Toolless Chassis Screw | None |
| Dust Filter | None |
| Mounting | None |
| Form Factor | Tiny (1L) |
| Dimensions (WxDxH) | 179 x 183 x 34.5 / 37 mm with rubber feet (7.05 x 7.2 x 1.36 / 1.5 inches with rubber feet) |
| Weight | Around 1.25 kg (2.76 lbs) |
| CONNECTIVITY | |
| Onboard Ethernet | Integrated 100/1000M |
| WLAN + Bluetooth | Intel 9560 11ac, 2x2 + BT5.0 |
| Front Ports |
|
| Optional Front Ports (configured) | None |

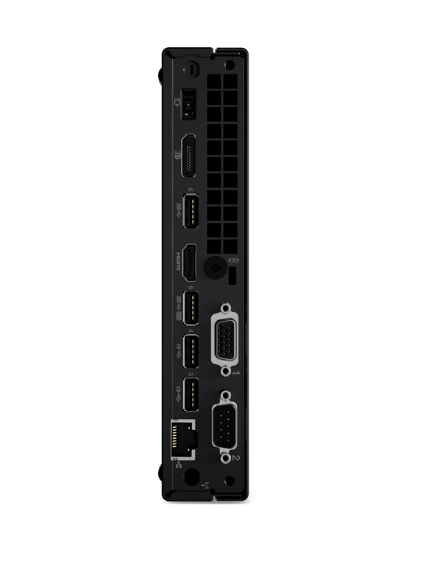

| Rear Ports |
|
| Optional Rear Ports (configured) | 1x VGA |
| Monitor Cable | None |
| SECURITY & PRIVACY | |
| Security Chip | Discrete TPM 2.0, TCG certified |
| Fingerprint Reader | No fingerprint reader |
| Physical Locks | Kensington Security Slot, 3 x 7 mm |
| Kensington Cable Lock | None |
| Chassis Intrusion Switch | Chassis Intrusion Switch |
| MANAGEABILITY | |
| System Management | Non-vPro |
| SERVICE | |
| Base Warranty | 1-year, Onsite |
| Included Upgrade | 3Y Premier Support Upgrade from 1Y Onsite (5WS0T36147) |
| CERTIFICATIONS | |
| Green Certifications |
|
| Mil-Spec Test | MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation) |
| SOFTWARE | |
| Operating System | Windows 10 Pro 64, English |
| Bundled Software | None |
