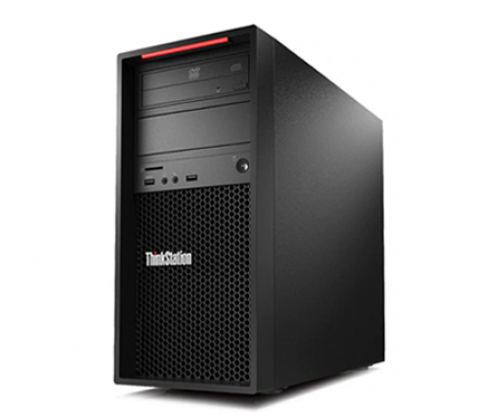

Lenovo ThinkStation P520c 30BX00EKMY Tower Desktop PC


Out of Stock

Brand: Lenovo

  • Share

Get shipping estimates

Shipping Method

 Lenovo ThinkStation P520c
Processor Intel Xeon W-2223 (4C / 8T, 3.6 / 3.9GHz, 8.25MB)
Processor Sockets 1x FCLGA2066
Discrete Graphics NVIDIA T1000 4GB
Chipset Intel C422
Memory 1x 16GB RDIMM DDR4-2933 ECC
Memory Slots 4 DDR4 DIMM slots, 4 channels capable
Max Memory Up to 256GB (4x 64GB RDIMMs) DDR4-2933
M.2 SSD Drive 1x 512GB SSD M.2 PCIe NVMe Opal
PCIe SSD Adapter None
Optical None
Audio Chip High Definition (HD) Audio, Realtek ALC662 codec
Power Supply 625W Platinum Fixed
Keyboard USB Calliope Keyboard, Black, English
Mouse USB Calliope Mouse
Expansion Slots Two PCIe 3.0 x16
One PCIe 3.0 x4
One PCIe 3.0 x8
M.2 Slots Up to 5x M.2 SSD:
• 2 via onboard slots
• 3 via Single M.2 to PCIe adapter
Dimensions (WxDxH) 175 x 426 x 376 mm (6.89 x 16.77 x 14.8 inches, with feet)
Weight 14.5 kg (31.96 lbs, maximum configuration)
Onboard Ethernet Intel I219-LM, 1x GbE RJ-45
WLAN + Bluetooth None
Card Reader None
Front Ports 2x USB 3.1 Gen 1
1x microphone (3.5mm)
1x headphone (3.5mm)
Rear Ports 4x USB 3.1 Gen 1
1x line-in (3.5mm)
2x PS/2 ports (keyboard / mouse)
1x Ethernet (RJ-45)
2x USB 2.0
1x microphone (3.5mm)
1x line-out (3.5mm)
Security Chip Discrete TPM 2.0, TCG certified
Physical Locks Kensington Security Slot
Warranty 3Y Premier Support Upgrade from 1Y Onsite (5WS0T36141)
