Performance & Hardware

• Processor: Intel® Core™ Ultra 7 255HX (20 Cores: 8 Performance + 12 Efficient / 20 Threads, P-core 2.1–5.2GHz, E-core 1.6–3.8GHz, 30MB Intel® Smart Cache)

• NPU: Integrated Intel® AI Boost (Up to 13 TOPS)

• Graphics: NVIDIA® GeForce RTX™ 5060 8GB GDDR7 (Boost Clock 2497MHz, 115W TGP, 572 AI TOPS)

• Chipset & AI Engine: Intel® HM870 Chipset + Dedicated Lenovo LA3 AI Chip

• Memory: 16GB DDR5-5600 (1x 16GB SO-DIMM, two DDR5 SO-DIMM slots, dual-channel capable, upgradable up to 32GB)

• Storage: 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®

• Storage Support: Two M.2 2280 PCIe® 4.0 x4 slots (Supports up to two M.2 2280 SSDs, up to 1TB each)

Display & Multimedia

• Display Size & Resolution: 16.0" WQXGA (2560x1600) 16:10 aspect ratio

• Panel Type & Features: OLED, 1100 nits peak / 500 nits typical brightness, Glossy, 100% DCI-P3, 165Hz Refresh Rate, Dolby Vision®, DisplayHDR™ True Black 600, VESA Certified DisplayHDR™ True Black 1000, Factory Color Calibration

• Camera: 5.0MP HD Camera with physical E-shutter switch

• Audio: Stereo speakers (2W x2) by HARMAN, powered by Realtek® ALC3287 codec, optimized with Nahimic Audio

• Microphone: 2x Array Microphones

Design & Construction

• Dimensions (W x D x H): 364.38 x 268.06 x 21.69–25.95 mm (14.35 x 10.55 x 0.85–1.02 inches)

• Weight: Starting at 2.43 kg (5.36 lbs)

• Color: Eclipse Black

• Build Material: Aluminium Top (Anodized with Sandblasting) and PC-ABS Bottom

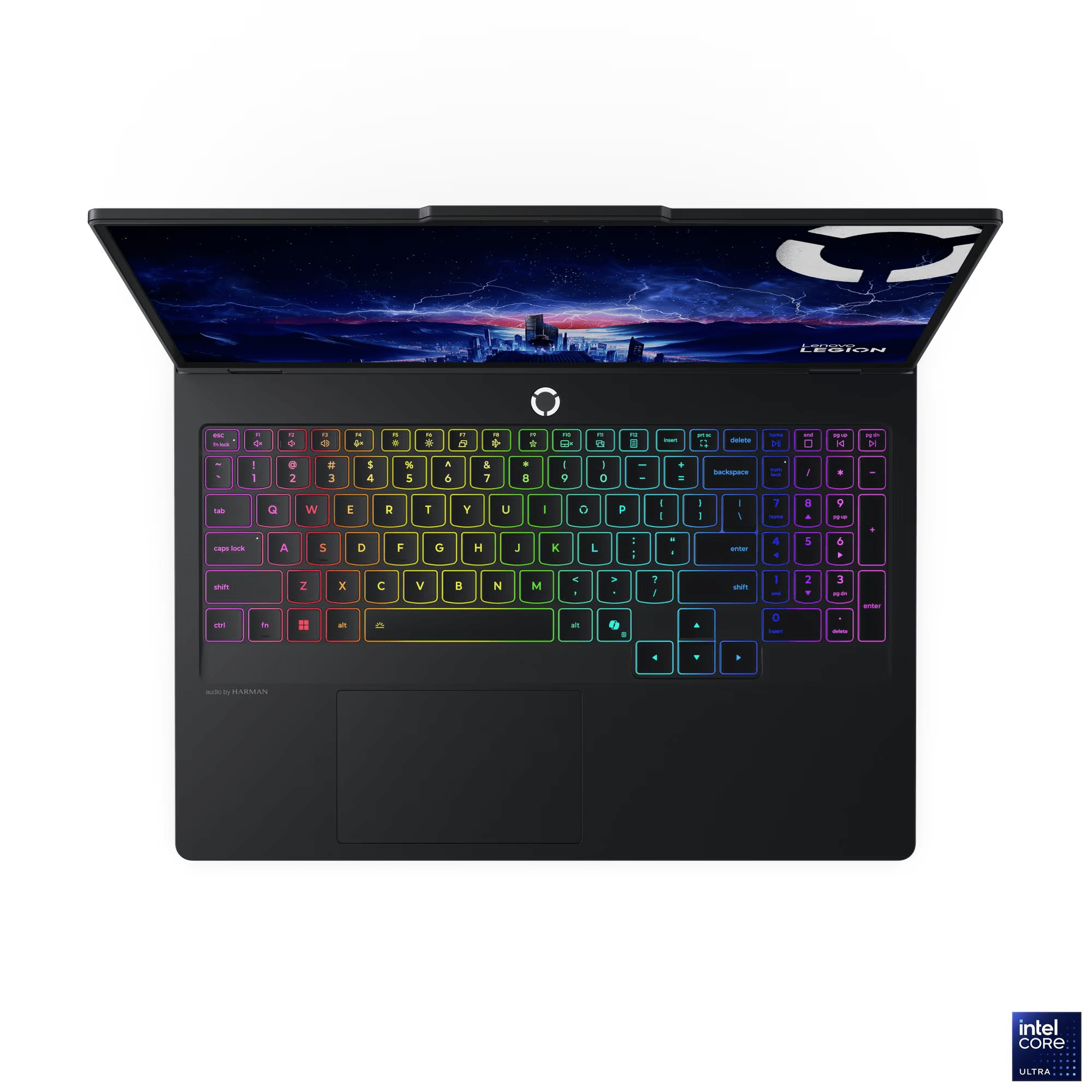

• Keyboard: Full-size 4-Zone RGB Backlit English keyboard with numeric keypad

• Touchpad: Buttonless Mylar® surface multi-touch Precision TouchPad

Connectivity & Ports

• Wireless Network: Wi-Fi® 7 (802.11be 2x2)

• Bluetooth: Bluetooth® 5.4

• I/O Ports:

  • 1x Thunderbolt™ 4 / USB4® 40Gbps (supports DisplayPort™ 2.1)

  • 1x USB-C® 3.2 Gen 2 (10Gbps, supports USB PD 95–100W, DisplayPort™ 2.1)

  • 3x USB 3.2 Gen 1 Type-A (5Gbps, 1x Always On)

  • 1x HDMI® 2.1 (supports output up to 8K@60Hz)

  • 1x RJ-45 Ethernet (100/1000M)

  • 1x 3.5mm Headphone / Microphone Combo Jack

  • 1x Slim Tip Power Connector

Power, Software & Warranty

• Battery: Integrated 80Wh battery

• Power Supply: 245W Slim Tip AC Adapter

• Operating System: Windows 11 Home Single Language

• Bundled Software: Office Trial + Lenovo® AI Now

• Warranty: 2-Year Legion Ultimate Support Onsite Warranty
