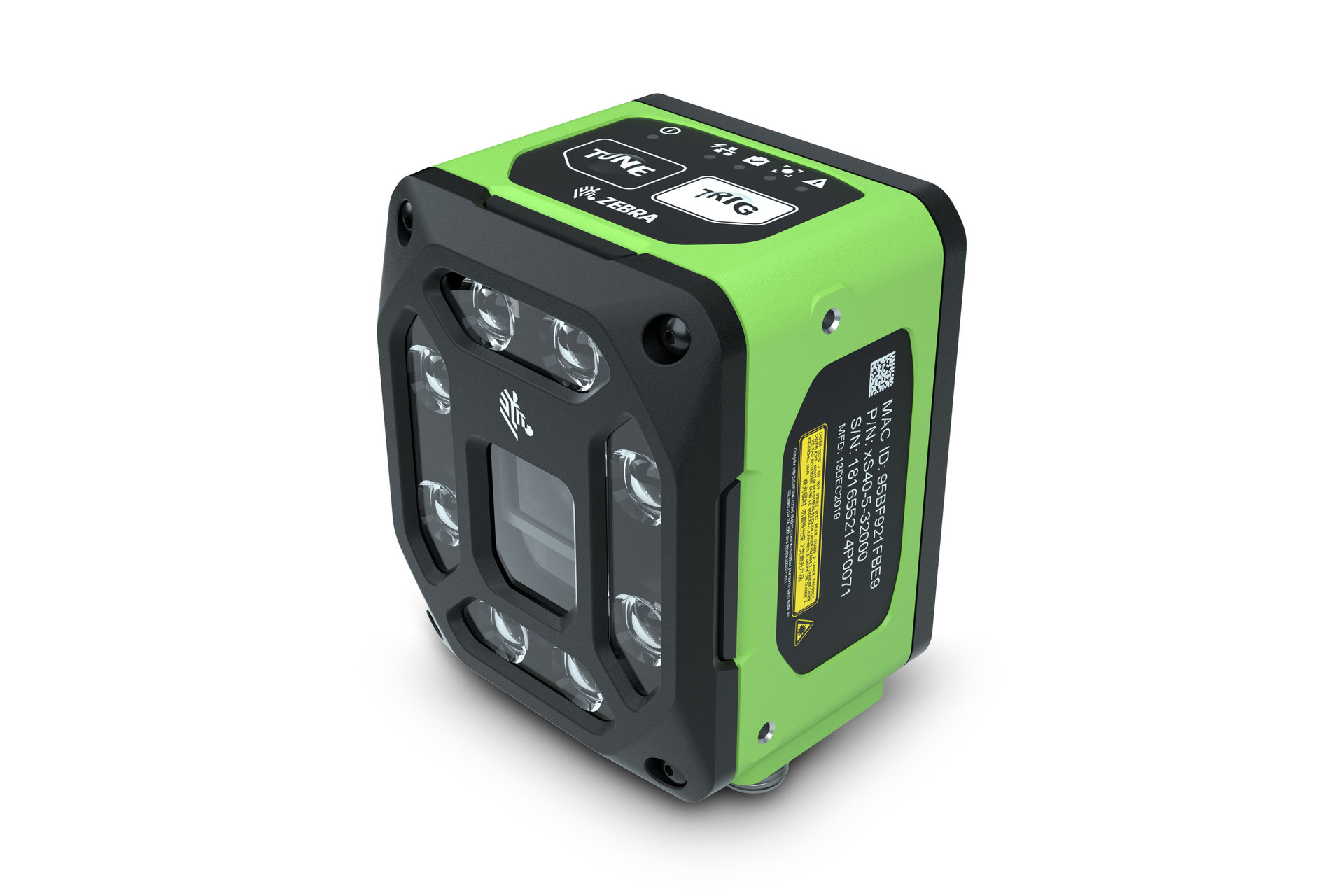

NS42 Smart Vision Sensor

Hotline: +6012-9893528/ 07-5575688/ 012-7718082

MYR0.00

Contact 0129893528 for price ✓

Add To Cart

IN STOCK

Brand: Zebra

Country

Region

Shipping Method

Specifications

Image Sensor & Resolution: Monochrome global shutter sensor available in 2.3 MP (1920 x 1200 at up to 60 fps) and 5.1 MP (2592 x 1944 at up to 42 fps) variants.

Lens: Autofocus liquid lens with standard range (30°) or wide-angle (46°) options.

AI & Processing: Dedicated Neural Processing Unit (NPU) with 8 GB of memory; executes all processing directly on the device.

AI & Machine Vision Tools:
- Pretrained Deep Learning-based AI-OCR (reads date codes, lot codes, and serials up to 900 products/minute without local training).
- Anomaly detection with heatmap visualization.
- Traditional tools including barcode scanning, blob, edge, locate, measurement, and filters.

Lighting: Integrated multifunction lighting supporting red, white, and infrared (IR) wavelengths.

Connectivity & Ports:
- M12 Gigabit Ethernet with Power over Ethernet (PoE / PoE+)
- USB 3.0 / USB-C
- Serial RS-232 / industrial protocols
- 9 programmable digital I/O ports (4 opto-isolated inputs/outputs, 5 non-isolated digital outputs, 0–10V analog output)

Physical & Environmental: Rugged aluminum housing sealed to IP65 and IP67 standards; operating temperature of 0°C to 45°C (external PSU) or 0°C to 40°C (PoE).
