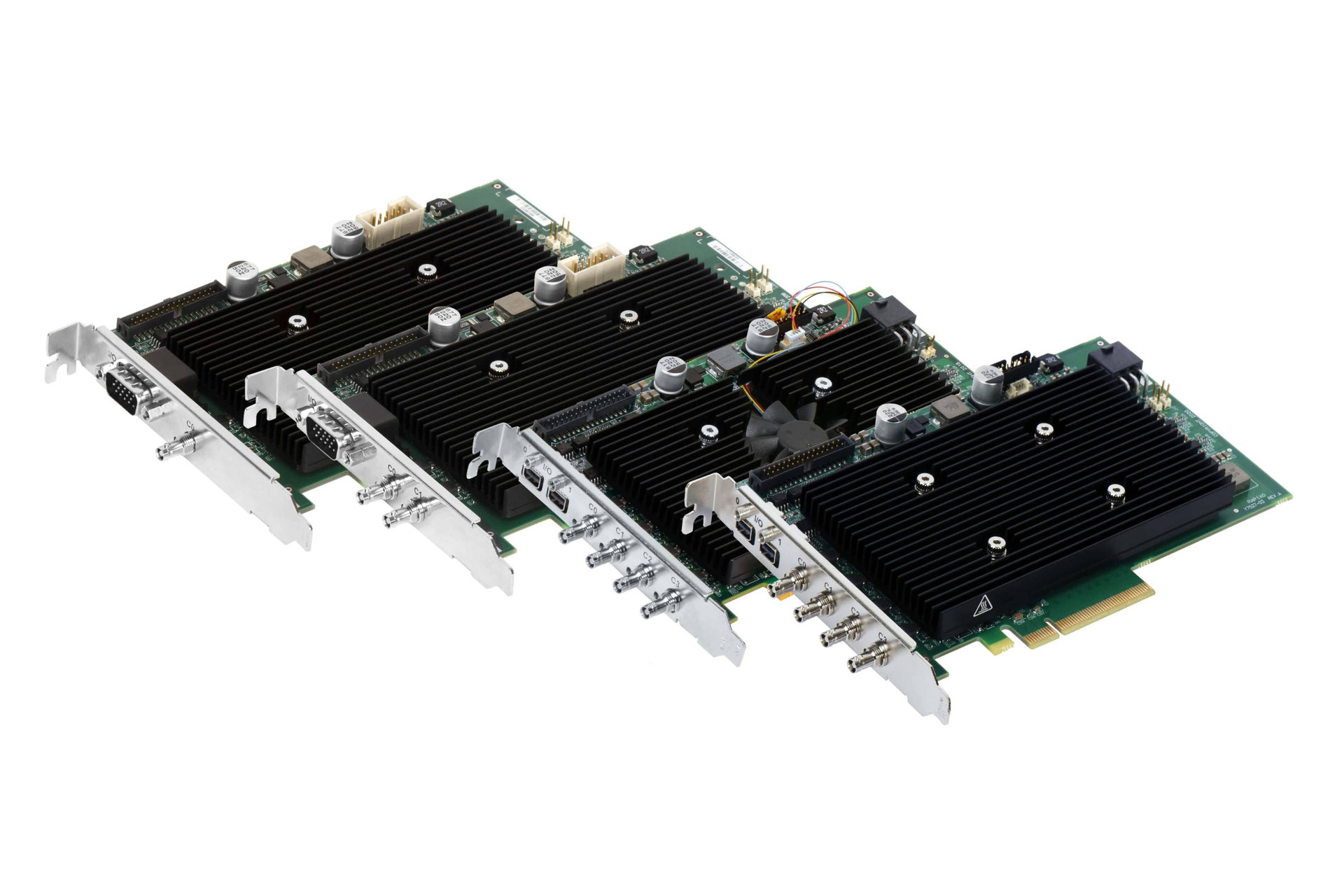

Rapixo Series Frame Grabbers
MYR0.00
Size
IN STOCK
Brand: Zebra
Get shipping estimates
| Country | ||
| Region | ||
| Shipping Method | ||
|
|
||
Rapixo Series Models & Key Specifications
1. Rapixo CXP Pro Octo
- Connections: Eight high-density BNC ports
- Speed / Standard: 12.5 Gbps per channel (CoaXPress 2.1)
- Host Interface: PCIe Gen3 x16
- Onboard Memory: 16 GB DDR4
2. Rapixo CoF (CoaxPress-over-Fiber)
- Connections: QSFP+/QSFP28 fiber optic ports (supports up to 4 cameras, distances up to 250 meters without degradation)
- Speed / Standard: 10–25 Gbps per channel (up to 100 Gbps total throughput across 4 channels)
- Host Interface: PCIe Gen3 x16
- Onboard Memory: 4–16 GB DDR4
3. Rapixo CXP
- Connections: Single-, dual-, or quad-input high-density BNC connectors
- Speed / Standard: 1.25 to 12.5 Gbps per connection (CXP-6 or CXP-12; supports Power-over-CoaXPress / PoCXP)
- Host Interface: PCIe 2.1 / 3.1
- Onboard Memory: 1–8 GB memory

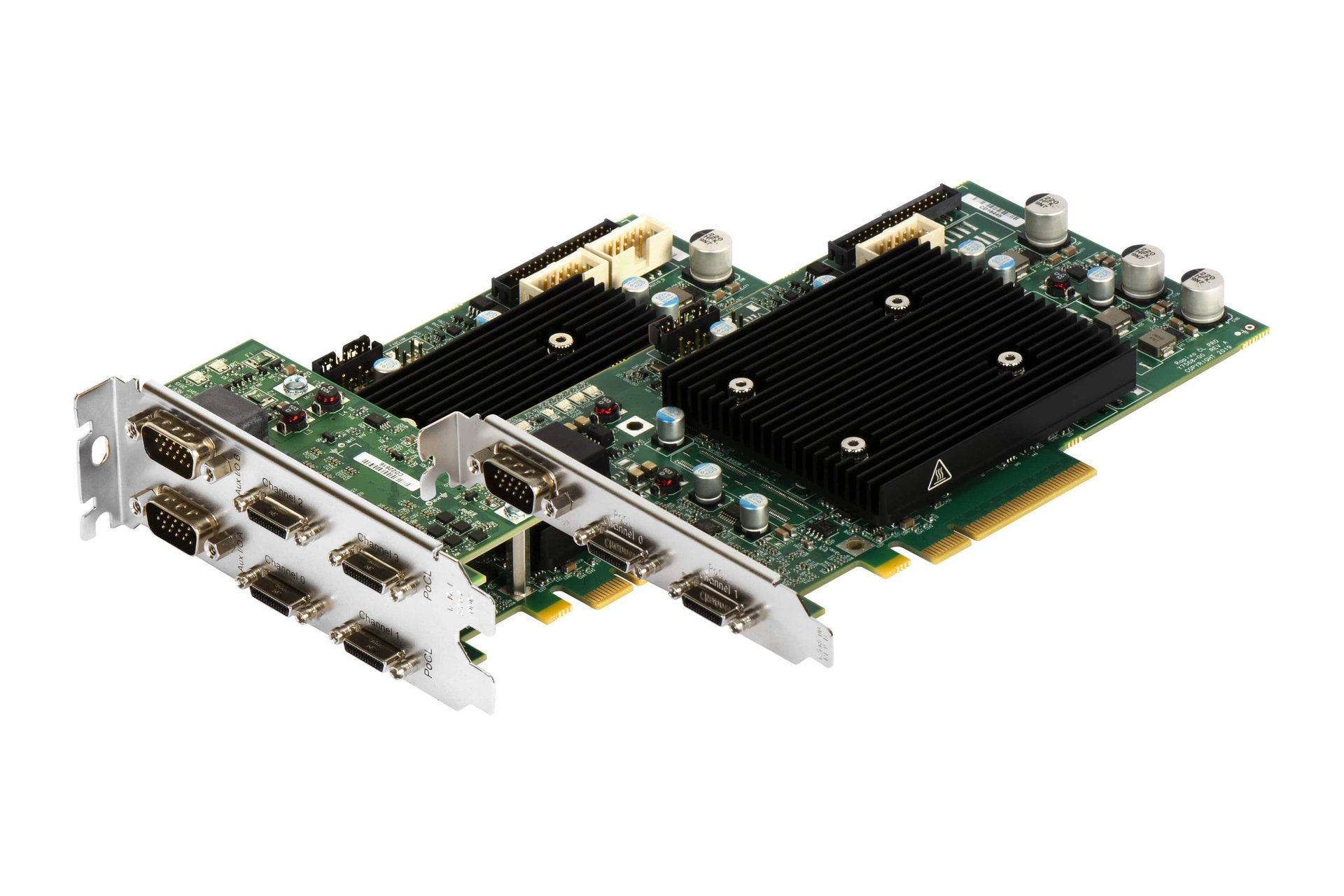

4. Rapixo CL Pro
- Connections: HDR26 Camera Link connectors (supports up to four Base or two Full/80-bit mode cameras)
- Speed / Standard: 20–85 MHz (Camera Link 2.1, with PoCL support and Xilinx Kintex-7 FPGA processing offload)
- Host Interface: PCIe 2.0 x8
- Onboard Memory: 4 GB DDR3

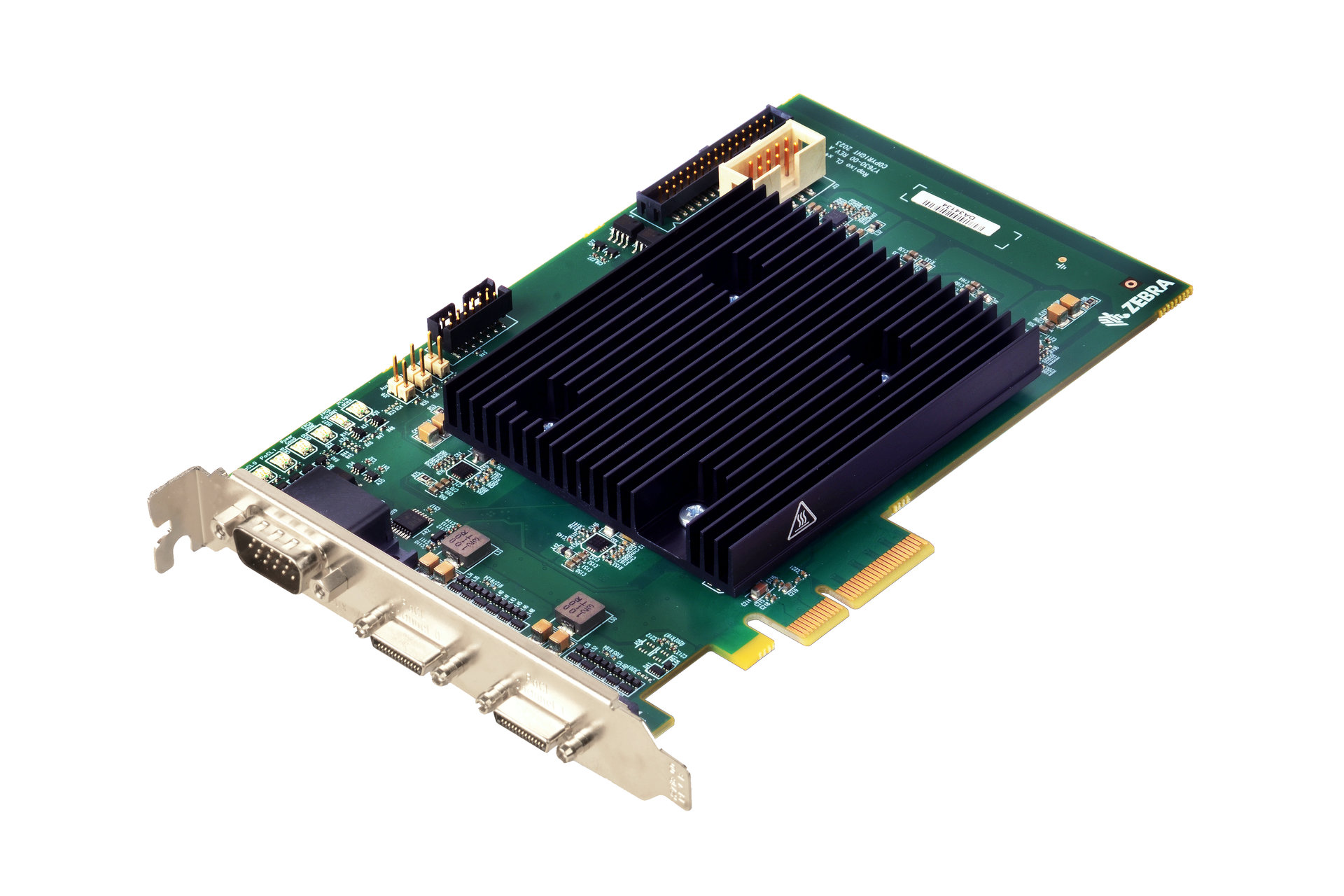

5. Rapixo CL DB-SF / Rapixo CL
- Connections: Dual-Base or single-Full Camera Link configuration
- Speed / Standard: 20–85 MHz (Camera Link 2.1)
- Host Interface: PCIe 2.0 x4
- Onboard Memory: 512 MB DDR3 SDRAM
Common Features
- FPGA Offload: Optional custom C/C++ or Aurora FDK-based FPGA image pre-processing on select models.
- Software Support: Zebra Aurora Imaging Library SDK and Aurora Design Assistant IDE.
