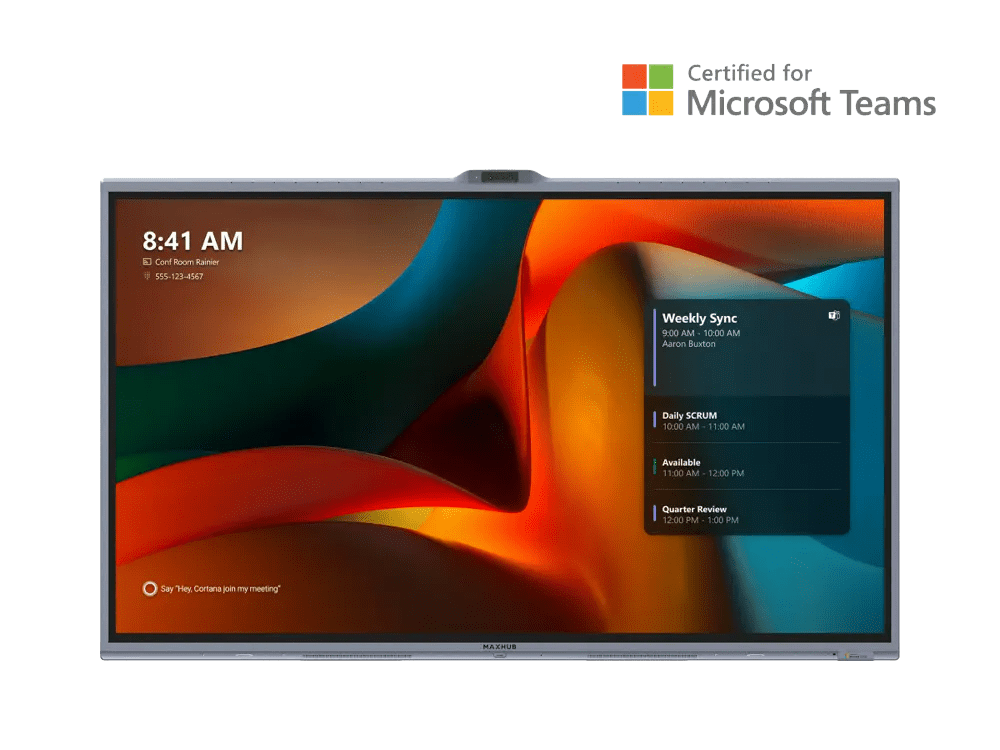

Core Display Panel
- Screen Size: 86 inches diagonal
- Panel Type: VA LCD with D-LED backlight
- Resolution: 4K Ultra HD (3840 × 2160)
- Refresh Rate: 60 Hz
- Brightness: 350 cd/m²
- Contrast Ratio: 5000:1
- Viewing Angle: 178° horizontal / 178° vertical
- Color Depth: 10-bit (1.07 Billion colors)
- Color Gamut: 90% NTSC (typical)
- Color Accuracy: Delta E ≤ 1.5
- Surface Treatment: Anti-glare glass, 25% haze, 9H hardness rating
Touch & Writing System
- Touch Technology: Infrared (IR) sensing
- Touch Points: 50 points (Windows) / 20 points (Android)
- Touch Accuracy: ±0.5 mm
- Writing Response Time: ≤2.5 ms
- Minimum Object Detection: 1.5 mm
- Special Features: Zero-parallax bonding, Windows Ink compatible, Palm Rejection, anti-collision pen tips [1]
Camera & Video System
- Lens Architecture: Built-in triple-lens (Trident) system
- Sensor Resolution: 50 Megapixels
- Optical Zoom: 2x physical zoom
- Hybrid Zoom: 5x digital/optical combination
- Field of View (FOV): 99° diagonal coverage
- AI Functions: Auto-framing, Speaker tracking, Intelligent close-ups, Gallery view
Audio & Sound Enhancement
- Microphone Configuration: Integrated 16-element microphone array
- Voice Pickup Range: Up to 15 meters (49 feet)
- Pickup Angle: 180° front-facing arc
- AI Audio DSP: Acoustic Echo Cancellation (AEC), Automatic Gain Control (AGC), Noise Reduction, Audio Fence (blocks outside noise)
- Speaker System: 2.1 Channel soundbar
- Output Power: 40 Watts total (2 × 10W mid-high speakers + 1 × 20W subwoofer)
Processing & Operating System
- Primary OS: MAXHUB OS 7.0
- Compute Architecture: Dual-system support via pluggable OPS PC module
- Typical i5 Module (MT71E): Intel Core i5, 16GB DDR4 RAM, 256GB SSD, Windows 10/11 IoT
- Typical i7 Module (MT71F): Intel Core i7, 16GB DDR4 RAM, 256GB SSD, Windows 10/11 IoT [1]
Physical Ports (I/O Interface)
- HDMI Input: 2 × HDMI 2.0
- HDMI Output: 1 × HDMI 2.0
- USB-C: 1 × Full-function (DisplayPort, 65W Power Delivery, Touch, Data)
- USB-A: 2 × USB 3.0, 1 × USB 2.0
- USB-B: 1 × Touch 2.0 out port
- Audio Ports: 1 × 3.5mm Audio In, 1 × 3.5mm Audio Out, 1 × Optical (SPDIF) Out
- Control Ports: 1 × RS232
-
